Maximum Cold working pressure 10,000 PSI / 700 bar
Stainless Steel AISI 316
Object connection : 1/2" NPT male
Hose Connection : 1/2"BSP male, 60 degree cone

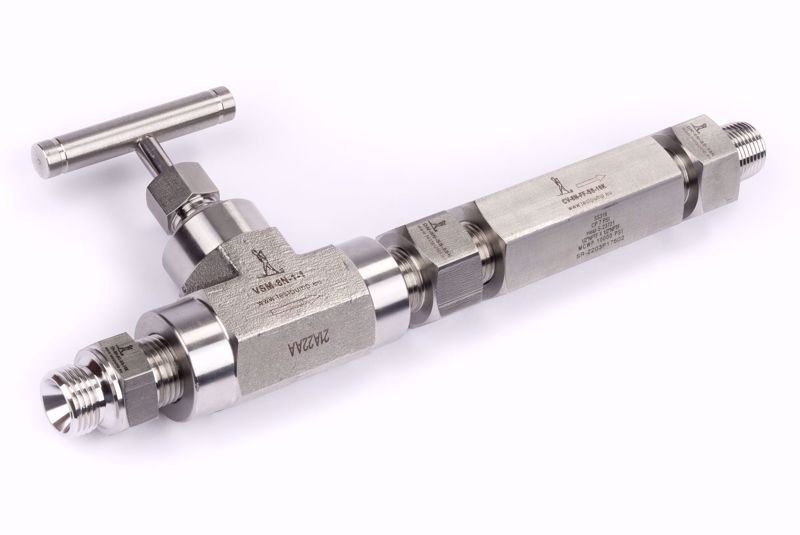

The Injection Manifold has a Needle Valve as a Chocke Valve to adjust the injection rate.
And a Check Valve to block the possibility of back flow.
- 1x VSM-8N-1-1 - 1/2" NPT Straight Neelde Valve - female x female
- 1x CV-8N-FF-SS-10K - 1/2" NPT Check Valve
- 2x DN-8N-SS-15K - Double Nipple 1/2" NPT Male
- 1x VN-8N-8G-SS-15K - Adapter 1/2" NPT male x 1/2" BSP male, 60 degree cone
