Vacuüm / Vul keuze-ventiel

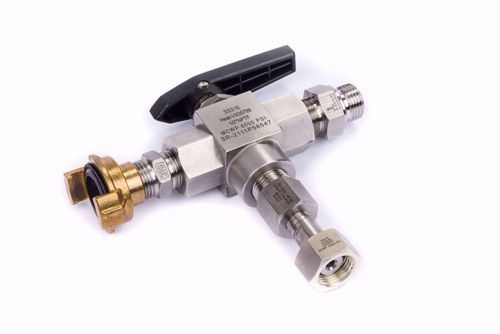

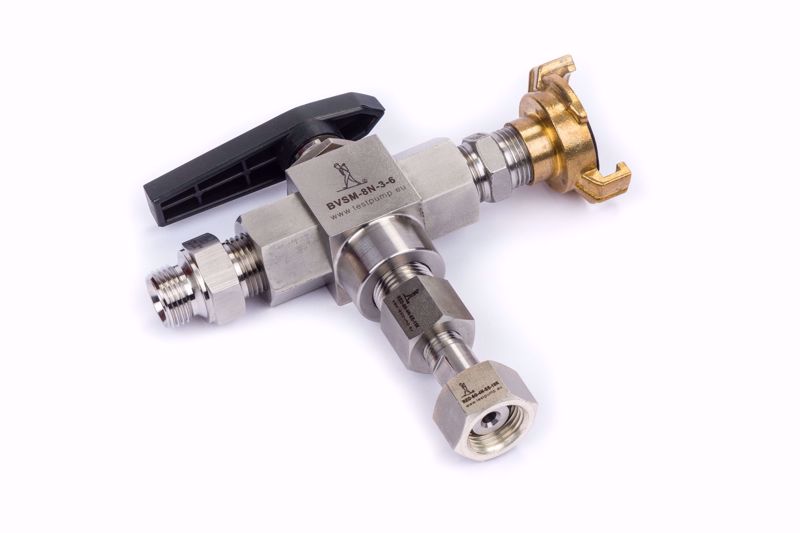

Vacuum / Fill Selector Manifold
Maximum Cold working pressure 115 PSI / 8 bar
Stainless Steel AISI 316 & Brass
Object connection : 1/2"BSP female swivel, 60 degree cone and o-ring
Vacuum Hose Connection : 1/2"BSP male, 60 degree cone
Water Supply Connection : GEKA
The Vacuum / Fill Selector Manifold has a 3-way Ball Valve as a Selector Valve to connect your Test Object with the Vaccum Pump, by switching the Selector Valve to the Vaccum Connection and when vacuum is reached you can switch the Selector Valve to your Water Supply Connection to fill your Test Object.
Consists of:
- 1x BVSM-8N-3-6 - 1/2" NPT 3-Way Ball Valve - female
- 1x RED-8N-4N-SS-15K - Reducer 1/2" NPT male x 1/4" NPT female
- 1x RED-8G-4N-SS-10K - Adapter 1/2" BSP female with 60 degree cone and o-ring x 1/4" NPT Male
- 1x VN-8N-8G-SS-15K - Adapter 1/2" NPT male x 1/2" BSP male, 60 degree cone
- 1x - Double Nipple 1/2"BSP Male
- 1x - GEKA x 1/2" BSP Female
