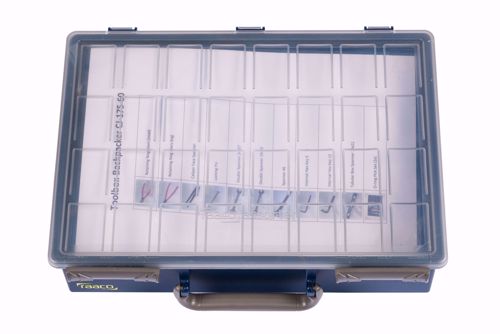

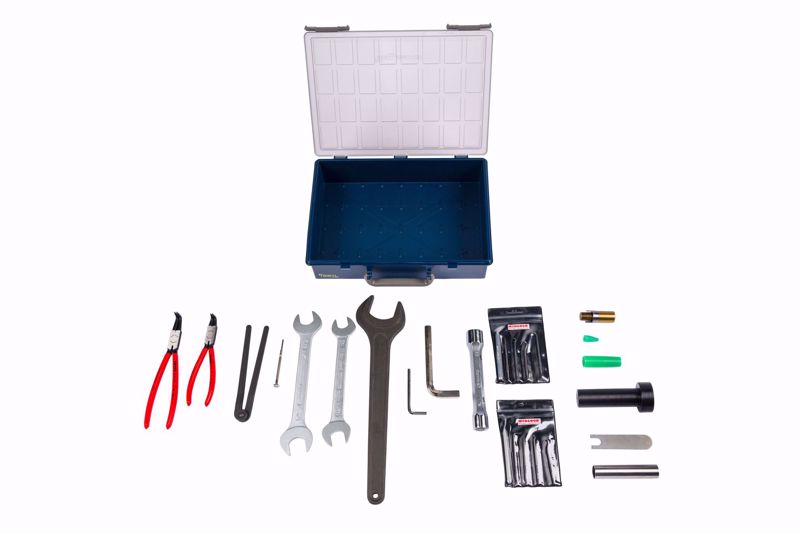

Toolbox for CJ-175-60-01 Pump
Toolbox for CJ-175-60-01 Pump
Be the first to review this product
€597.50 excl tax
Toolbox for CJ-175-60-01 Pump
Current stock:
1 in stock
Part Number:
140032
Shipping:
Ordered before 2 pm. same day shipped, except weekends and holidays (when in stock)
Qty:
Questions? Call +31-(0)592-291771
Related products
Pneumatic Seal Kit for CJ-175-60-01 Pump
140033
Pneumatic Seal Kit for CJ-175-60-01 Pump
Consists of:
- 1x
175-60-01-30
- O-ring
- 4x
175-60-01-39
- O-ring
- 2x
175-60-01-42
- Double Lip Seal
- 2x
175-60-01-44
- O-ring
- 1x
175-60-01-48
- Step Seal
- 3x
175-60-01-50
- O-ring
- 1x
175-60-01-56
- Gasket
- 4x
175-60-01-58-2
- Seal
- 4x
175-60-01-58-3
- O-ring
- 16x
175-60-01-58-4
- Ball
- 2x
175-60-01-58-6
- Seal
- 2x
175-60-01-58-7
- O-ring
- 3x
175-60-01-58-8
- O-ring
- 2x
175-60-01-58-9
- Seal
- 2x
175-60-01-58-10
- O-ring
- 2x
175-60-01-59
- Spring
- 3x
175-60-01-60
- O-ring
- 2x
175-60-01-61.1
- Bolt
- 2x
175-60-01-61.2
- Washer
- 2x
175-60-01-61.4
- O-ring
€248.50 excl tax
Hydraulic Seal Kit for CJ-175-60-01 Pump
140034
Hydraulic Seal Kit for CJ-175-60-01 Pump
Consists of:
- 1x
175-60-01-08
- Back-up Seal
- 1x
175-60-01-09
- O-ring
- 1x
175-60-01-10
- O-ring
- 1x
175-60-01-12
- Spring
- 1x
175-60-01-14
- Guide Strip
- 1x
175-60-01-16
- High Pressure Seal
- 1x
1601-1630
- Lock Nut Second Plunger
- 1x
175-60-01-18
- O-ring
- 1x
175-60-01-20
- Spring
- 2x
175-60-01-29
- Back-up Seal
- 2x
175-60-01-30
- O-ring
- 1x
175-60-01-32
- High Pressure Seal
- 1x
175-60-01-34
- O-ring
- 1x
175-60-01-35
- Step Seal
€288.00 excl tax
Portabale 500 bar High Flow Air Driven Test Pump
CJ-175-60-01
Portable 500 bar high flow Air Driven Hydraulic Test Pump
with a weight of only 20 Kg.
Ratio 1:60
Maximum Output Pressure: 500 bar (7,200 psi)
Maximum Flow: 11 L/min (2.90 gpm)
Maximum Air Supply: 12 bar (170 psi)
Maximum Air Consumption: 3.1 Nm3/min (110 scfm)
Working Temperature: 5-60 degree Celcius (41-140 degree Fahrenheit)
The unit is a ready to use pump and includes the following components:
-0-600 bar (0-9,000 psi) hydraulic gauge for pressure indication.
-0-8 bar 1/2" Air Filter/Regulator and a 1/2" Lubricator.
-Ball Valve in the air supply to be use as a start/stop valve.
-Geka fluid supply connection with a 1/2" NPT strainer.
-1/2" NPT female high pressure outlet.
-1/2" Needle valve to be used as a Bleed Valve.
High Pressure connection: 1/2"NPT female
Fluid Supply connection: GEKA
Air Supply connection: 1/2" BSP female
Bleed Valve: 1/2" NPT female
Standard compatible with the following fluids:
-Plain water
-Water / glycal mix
-Petroleum based oils
€3175.00 excl tax
