Low Pressure Hoses

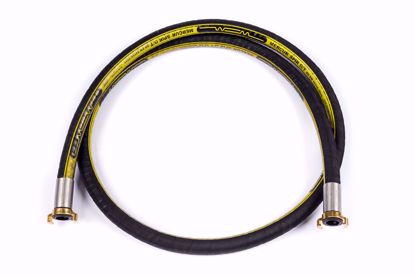

Suction Hose - GEKA
HM-19-2.5-GK
Spiral Suction Hose with a maximum cold working pressure of 8 bar.
Minimum burst pressure: 20 bar ( safety factor 2,5:1 )
Total length 2,5 meter.
Brass GEKA Fittings
GEKA Seal: NBR-70
Minimum burst pressure: 20 bar ( safety factor 2,5:1 )
Total length 2,5 meter.
Brass GEKA Fittings
GEKA Seal: NBR-70
€103.50 excl tax
Suction Hose - GEKA - Stainless Steel
HM-19-2.5-GK-SS
Spiral Suction Hose with a maximum cold working pressure of 16 bar.
Minimum burst pressure: 64 bar ( safety factor 4:1 )
Total length 2,5 meter.
Stainless Steel AISI 316 GEKA Fittings
GEKA Seal: FKM
Minimum burst pressure: 64 bar ( safety factor 4:1 )
Total length 2,5 meter.
Stainless Steel AISI 316 GEKA Fittings
GEKA Seal: FKM
€130.00 excl tax

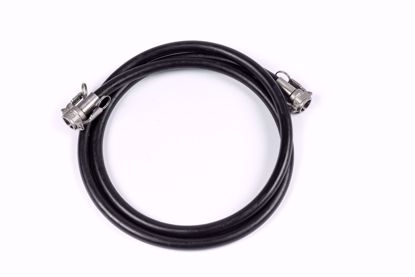

Bleed Hose - Camlock - Stainless Steel
HM-12-2.5-CAM-SS
Bleed Hose with a maximum cold working pressure of 10 bar.
Minimum burst pressure: 25 bar ( safety factor 2,5:1 )
Total length 2,5 meter.
1/2"Female Camlock Fittings (DN15)
Material Camlock Fitting : Stainless Steel AISI 316
Camlock Seal : NBR
Minimum burst pressure: 25 bar ( safety factor 2,5:1 )
Total length 2,5 meter.
1/2"Female Camlock Fittings (DN15)
Material Camlock Fitting : Stainless Steel AISI 316
Camlock Seal : NBR
€80.00 excl tax
Bleed Hose Kit - Camlock - Stainless Steel
140024
Bleed Hose with a maximum cold working pressure of 10 bar.
Minimum burst pressure: 25 bar ( safety factor 2,5:1 )
Total length 2,5 meter.
1/2"Female Camlock Fittings (DN15)
Including two 1/2" NPT Male Camlock fittings (DN15)
Material Camlock Fitting : Stainless Steel AISI 316
Camlock Seal : NBR
Minimum burst pressure: 25 bar ( safety factor 2,5:1 )
Total length 2,5 meter.
1/2"Female Camlock Fittings (DN15)
Including two 1/2" NPT Male Camlock fittings (DN15)
Material Camlock Fitting : Stainless Steel AISI 316
Camlock Seal : NBR
€102.60 excl tax
