Testpump.eu

Go-Tool - Air Tool Lubricant

A Mixture of full synthetic oils,
with anti-corrosion and anti-wear additives.

Anti-Ice effect down to -60⁰C (-76⁰F).

Absorbs water without loss of lubrication propperties.

Reduces tool wear and downtime.

Content Ca. 1Kg

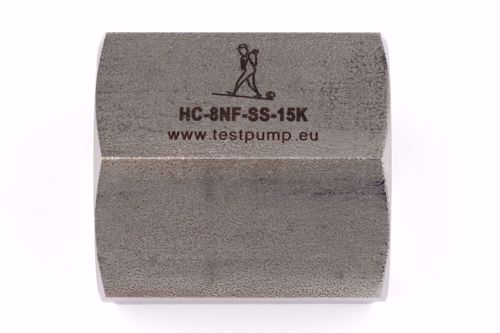

Hex Coupling 1/2" NPT Female x 1/2" NPT Female
Maximum cold working pressure 15,000 psi / 1.000 bar
Stainless Steel AISI 316

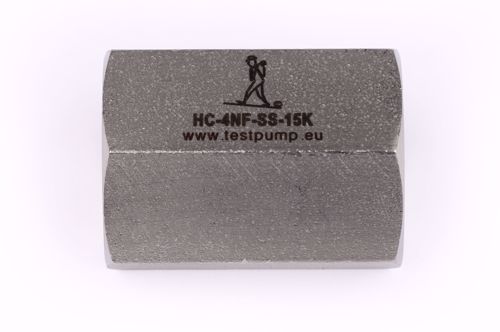

Hex Coupling 1/4" NPT Female x 1/4" NPT Female
Maximum cold working pressure 15,000 psi / 1.000 bar
Stainless Steel AISI 316

Thermoplastic High Pressure Hose with a maximum cold working pressure of 10,000psi / 700 bar.
Minimum burst pressure: 40,000 psi ( safety factor 4:1 )
Total length 5 meter.
Stainless Steel AISI 316 Fittings
1/2"BSP, 60 degrees swivel connection with o-ring

The o-ring enables you to hand tighten the connecting and be leek free till maximum working pressure.

Hydraulic Seal Kit for CJ-175-60-01 Pump

Consists of:
- 1x 175-60-01-08 - Back-up Seal
- 1x 175-60-01-09 - O-ring
- 1x 175-60-01-10 - O-ring
- 1x 175-60-01-12 - Spring
- 1x 175-60-01-14 - Guide Strip
- 1x 175-60-01-16 - High Pressure Seal
- 1x 1601-1630 - Lock Nut Second Plunger
- 1x 175-60-01-18 - O-ring
- 1x 175-60-01-20 - Spring
- 2x 175-60-01-29 - Back-up Seal
- 2x 175-60-01-30 - O-ring
- 1x 175-60-01-32 - High Pressure Seal
- 1x 175-60-01-34 - O-ring
- 1x 175-60-01-35 - Step Seal

Injection Manifold
Maximum Cold working pressure 10,000 PSI / 700 bar
Stainless Steel AISI 316

Object connection : 1/2" NPT male
Hose Connection : 1/2"BSP male, 60 degree cone

The Injection Manifold has a Needle Valve as a Choke Valve to adjust the injection rate.
And a Check Valve to block the possibility of back flow.

Consists of:
- 1x VSM-8N-1-1 - 1/2" NPT Straight Neelde Valve - female x female
- 1x CV-8N-FF-SS-10K - 1/2" NPT Check Valve
- 2x DN-8N-SS-15K - Double Nipple 1/2" NPT Male
- 1x VN-8N-8G-SS-15K - Adapter 1/2" NPT male x 1/2" BSP male, 60 degree cone
